Humidity / Stability Chambers

HUMIDITY CHAMBERS / SEED GERMINATORS INDIA

REMI Humidity Chambers are designed for testing of electronic, electrical components, corrosion studies on mechanical parts, shelf life studies on paints, varnishes and cement at respective manufacturing facilities. These chambers control precise temperature and Humidity.
These chambers are available in standard & GMP versions.

Salient Features

Precise monitoring of temperature and humidity conditions
Temperature range 10°C to 60°C, Humidity range 40% to 95% RH
Unique design of thermal barrier for better energy efficiency
Machine filled CFC free PUF insulation to eliminate void pockets
Powerful fan motor for forced air circulation to maintain uniform conditions inside chamber
Heating by long life SS tubular heaters
Hermetically sealed Compressor with CFC free refrigerant
Chamber calibration port on side
Adjustable trays
Output for remote alarm
Microprocessor controller with LCD display & capacitance type sensor
4″ attractive LCD display for direct display of humidity & temperature
Auto tuning of controller
Settable High / low alarm points with date and time
Centronic interface to record Temperature, Humidity, Date & Time by attaching Dot Matrix printer with Adjustable print interval
Remi “Datasoft”™ data acquisition software as per 21 CFR part 11 requirements (Optional)
Power failure and resumption recorded with date and time
PC communication through RS-485 with data acquisition software
High temperature safety cut off & alarms for high / lowset parameters
Low water level alarm and power cutoff of boiler tank heater
Overload cut off relay for compressor
Rounded inner chamber for easy cleaning
Attractive door profile
Data logger for 8 Point (4+4) temperature / humidity recording with sensor, printer interface and software (Optional)
Weight carrying capacity of each tray : 15 Kg Uniformly distributed
Auto door Closer
Smart Handle with LED door Closure indication
Optional
- Touch screen display ( TFT ) with additional features(Details overleaf)
- Validation protocol with IQ, OQ, PQ Documentation
- Port for calibration probes / safety back up

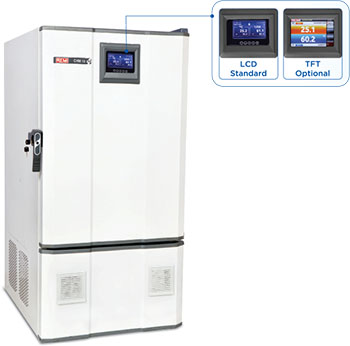

LCD Display

4 Inch attractive LCD display
Intelligent Controller helps maintain temperature in case of sensor failure
Battery Backup for Temperature Controller
Auto tuning of controller
Self-Diagnosis for errors
Histogram format of 24 hours temperature recording
Power failure and resumption recorded with date and time
Settable High / low alarm points
Memory for storage of upto 1000 records
Centronic interface to record Temperature, Date, & Time by attaching Dot Matrix printer with adjustable print interval
Alarm on equipment / output for remote alarm

Touch Screen Display

7 inch big colour touch screen
PLC (Programable logic controller)
Memory of 1500 records
Centronic interface to record Temperature, Date & Time by attaching Dot Matrix printer with adjustable print interval
Ethernet port
Battery backup in case of power failure for display, alarms & off-line data logging (optional)
Programmable cyclic timer for controlling illumination conditions
Remi “Datasoft”™ Data acquisition software complying to 21 CFR part 11 as per USFDA Guidelines (optional)

REMI ‘Data Soft’

Multiple level alpha numerical password with password ageing
Secured audit trail report
Alarm report with mention of alarm condition
Mean Kinetic Temperature able to be calculated for any days & alarm deviation report
Reports in graphical and tabular form
Data Stored in PC server with RS-485 connectivity and can be monitored on PC with password authentication
Multi chamber data acquisition on single software
Communication through RS 485 / TCP IP
GSM Mobile Alert for six Numbers
Power failure and resumption recorded with date and time

Optional Accessories

To be Ordered separately

Chamber illumination with the help of 2 Nos. fluorescent tubes
Chamber illumination with 2 Nos. ultra violet lights
24 hours Cyclic Timer for regulating illumination conditions
Data logger for 8 / 16 Point temperature & Humidity recording with sensors printer interface and software
Software as per 21 CFR Part 11 requirements
PLC Based Control System with HMI Touch Screen
Biometrics Magnetic Door Access for Secured Door opening with software to maintain log
Validation (mapping) consist of one cycle for temperature at any one set point for 24 hours on empty and loaded condition
Standby Refrigeration System
Standby Humidity System
GSM alert through SIM card

	CHM-6 Plus	CHM-10 Plus	CHM-12 Plus	CHM-16 Plus	CHM-19 Plus	CHM-28 Plus	CHM-35 Plus
Technical Data
Internal Volume (Liters)	200	280	370	450	540	800	1000
Number of Shelves	2	3	4	5	6	6	7
Internal Dimensions W x D x H (mm)	660 x 655 x 450	660 x 655 x 650	660 x 655 x 850	660 x 655 x 1050	660 x 655 x 1250	800 x 800 x 1250	800 x 800 x 1580
External Dimensions W x D x H (mm)	800 x 1095 x 1020	800 x 1095 x 1220	800 x 1095 x 1420	800 x 1095 x 1620	800 x 1095 x 1820	960 x 1370 x 1950	960 x 1370 x 2270
Temperature Range & Accuracy	10°C to 60°C, ± 1°C
Humidity Range (Rh) & Accuracy	40% to 95%, ± 3%
Temperature & Humidity control	Microprocessor with Capacitance type sensor
Display	4″ LCD Screen, Large size Display for ease of reading
Power Failure Alarm	Visual Alarm
Door Open Alarm	Audio Visual Alarm in case door open for over one minute
Temperature / Humidity Variation Alarm	Set Humidity ± 3%, Set Temperature ± 1°C, Audio Visual Alarm
Illumination	8 Watts Fluorescent Tube
Internal Body Material	Stainless Steel – 304 grade (Standard Models), Stainless Steel – 316 grade (GMP Models)
External Body Material	Powder Coated CRCA Steel (Standard Models), Stainless Steel – 304 grade (GMP Models)
Insulation	70 mm minimum for Body & 80 mm for Door, CFC free polyurethane foam
Noise Level	Less Than 65 db(A)
Recommended Voltage Stabilizer	VS-04					VS-07
Supply: 220-240 Volts, 50 Hz Single Phase.
