REFRIGERATED CENTRIFUGES

These Plus series Refrigerated Centrifuges are designed for centrifugation of temperature sensitive material and find application in routine and research work in auxiliary laboratories in industry, Educational & Research institutions, Bio Technology, Medical Laboratories, Hospitals, Blood Banks, Pharmaceutical & Clinical research laboratories.

All the centrifuges have rust proof, easy to clean Stainless Steel centrifuge inner chamber with steel guard. A wide variety of swing out and angle rotors with a choice of reduction adaptors make these units truly versatile.

Users can select models as per their requirements from high volume low speed Centrifuges (C-23 Plus, CPR-23 Plus), low volume high speed centrifuges (C-24 Plus, CPR-24 Plus) in table top design & compact high-speed high volume (C-30 Plus, CPR-30 Plus) floor standing centrifuges.

	Table Top Models					Floor Models
	High Volume Low Speed		Low Volume High Speed			High Volume High Speed
	C-23 Plus	CPR-23 Plus	C-24 Plus	CPR-24 Plus	CPR-24i Plus	C-30 Plus	CPR-30 Plus
Programable compensation for true sample temperature
Pre cooling
Acceleration Profiles	low, high	9	low, high	9	9	low, high	9
Deceleration Profiles	Coasting, low, high	9 & Coasting	Coasting, low, high	9 & Coasting	9 & Coasting	Coasting, low, high	9 & Coasting
Fast Spin
Calibration window on lid for speed
Display	LED	LCD	LED	LCD	LCD	LED	LCD
Control Communication	Digital	Digital	Digital	Digital	Digital	Digital	Digital
Self-Diagnostics of errors
Parameters setting switches	Feather touch keys	Bi-directional encoder	Feather touch keys	Bi-directional encoder	Bi-directional encoder	Feather touch keys	Bi-directional encoder
Brushless motor with frequency drive
Inverter fault detection with auto shut down
CFC free refrigeration system
No. of Programs		99		99	99		99
Last set parameters recall
Choice of rpm / rcf setting	RPM	RPM / RCF	RPM	RPM / RCF	RPM / RCF	RPM	RPM / RCF
Temperature display	°C	°C / °F	°C	°C / °F	°C / °F	°C	°C / °F
Digital countdown timer 0-99 min & Continuous run
Log of cumulative run time
Automatic Rotor Identification
Motor overload protection
Emergency lid lock release
Imbalance detection with centrifugation cut off
Password protection
Gas Hinge to prevent door falling

Models		C-23 Plus CPR-23 Plus	C-24 Plus CPR-24 Plus	CPR-24i Plus	C-30 Plus CPR-30 Plus
Technical Data
Max. Speed	rpm	7000	20000	20000	20000
Max. RCF	g’	7400	37570	37570	37570
Max. Tube Size	ml	250	100	250	250
Max. Capacity	ml	1200	400	1000	1200
*Lowest Temp.	°C	– 8	– 8	– 10	– 8
#Noise		≤ 60 dB	≤ 60 dB	≤ 60 dB	≤ 60 dB
W x D x H	mm	800 x 6OO x 500	775 x 575 x 475	830 x 650 x 500	660 x 765 x 945
Voltage Stabilizer	model	VS-03	VS-03	VS-03	VS-03

Supply: 220-240 Volts 50 Hz single Phase.
*Note Depending on capacity, type of rotor, centrifugeation speed,
ambient temperature and othe process parameters.
#Note : Measure as per standard protocol

Models	Capacity	Container	C-23 PlusCPR-23 Plus		C-24 PlusCPR-24 Plus		CPR-24i Plus		C-30 PlusCPR-30 Plus
Rotor Heads Listing
Models	Capacity	Container	Speed (rpm)	RCF ‘g’	Speed (rpm)	RCF ‘g’	Speed (rpm)	RCF ‘g’	Speed (rpm)	RCF ‘g’
Swing out Heads (with graduated glass tubes)

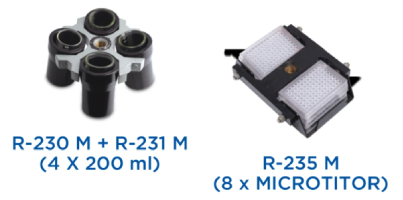

R-230 M + R-231 M	4 x 200 ML	GLASS	5100	4500					4500	3500
R-234 M	4 x 250 ML	PLASTIC	5500	5070			5500	5070	4500	3500
R-235 M	B X MICR0TIT0R	96 WELL	3200	1470			3200	1470	3200	1470
R-230 BM + R-233 BM	108 x 5ML (RIA)	RIA PLASTIC TUBES	5100	3980					4500	3500
R-240 M	16 x 50 ML	FALCON							3200	1775
R-240 AM	32 x 15 ML	FALCON							3200	1775
R-246 AM	4 x 25 ML	GLASS			11000	12180	11000	12180	11000	12180
Angle Heads (with polypropylene tubes)
R-236 M	6 x 200 ML	PLASTIC	7000	7400					7000	7400
R-237 M	8 x 100 ML	PLASTIC	7000	7400					7000	7400
R-238 M	12 x 50 ML	PLASTIC	7000	7400					7000	7400
R-239 M	36 x 15 ML	PLASTIC	7000	7400					7000	7400
R-241 M	4 x 100 ML	PLASTIC			14500	23980	14500	23980	14500	23980
R-243 M	8 x 25 ML	PLASTIC			18000	31150	18000	31150	18000	31150
R-244 M	12 x 15 ML	PLASTIC			18000	31150	18000	31150	18000	31150
R-247 M	8 x 50 ML	PLASTIC			16000	28620	16000	28620	16000	28620
R-248 M	24 x 1.5 ML	PLASTIC			20000	37570	20000	37570	20000	37570
R-249 M	6 strips of 8 x 0.2 ml	PLASTIC			11000	12180	11000	12180	11000	12180
R-250 M	48×1.5 ML	PLASTIC			16000	28620	16000	28620	16000	28620
Angle Heads suitable for Falcon Tubes (without tubes)
R-238 MF	12 x 50 ML	FALCON	7000	7400					7000	7400
R-239 MF	24 x 15 ML	FALCON	7000	7400					7000	7400
R-244 MF	12 x 15 ML	FALCON			11000	14610	11000	14610	11000	14610
R-247 MF	8 x 50 ML	FALCON			11000	14610	11000	14610	11000	14610

Reduction Adaptors for Swing Out Head Model R-230 M + R-231 M

Models	Tube Capacity	No. of tubes per Adaptor	Total No. of Tubes
Suitable for Glass Tubes (with tubes)
RA-2311	100 ml	1	4
RA-231 2	50 ml	1	4
RA-2313	30 ml	3	12
RA-2314	15 ml	7	28
Suitable for Vacutainer Tubes (without tubes)
RA-2315	Upto 4 ml (100 mm long)	6	24
RA-2316	Upto 10ml (100 mm long)	5	20
RA-2317	Upto 5ml (75 mm long)	6	24
